90UT000TFZ - Legion T5 26IRB8

90UT000TFZ - Legion T5 26IRB8

$2,199.00
$2,300.00 $2,199.00
Sale Sold out

Model Configurations

PERFORMANCE
Processor
Intel® Core™ i7-13700F, 16C (8P + 8E) / 24T, Max Turbo up to 5.2GHz, P-core 2.1 / 5.1GHz, E-core 1.5 / 4.1GHz, 30MB
Graphics
NVIDIA® GeForce RTX™ 4070 12GB GDDR6X 466 AI TOPS
Chipset
Intel® B660 Chipset
Memory
2x 16GB UDIMM DDR5-5600
Memory Slots
Four DDR5 UDIMM slots, dual-channel capable
Max Memory
Up to 64GB DDR5-5600
Storage
1TB SSD M.2 2280 PCIe® 4.0x4 NVMe®
Storage Support
Up to five drives, 2x 3.5" HDD + 1x M.2 SSD + 1x open M.2 SSD + 1x open 2.5 HDD Bay • 3.5" HDD up to 2TB each • M.2 SSD up to 2TB each
Card Reader
None
Optical
None
Audio Chip
High Definition (HD) Audio, Realtek® ALC897-Q codec
Speakers
No speakers
Power Supply
500W 85%
DESIGN
Keyboard
USB Calliope Keyboard, Black, English
Mouse
USB Calliope Mouse, Black
Optional Bay
2.5'' HDD bay
Expansion Slots
  • One PCIe® 4.0 x16
  • One PCIe® 3.0 x4
  • Three M.2 slots (one for WLAN, two for SSD)
Case Color
Storm Grey
System Lighting
Legion Lighting + Internal Ambient Lighting
Chassis
Transparent Cover
Cooler
M.2 SSD DECO Mylar® Heatsink + 150W 120MM-Fan with ARGB Light
System Fan
1x Rear with ARGB + 2x Front with ARGB
Carry Handle
Carry Handle
Pen
Pen Not Supported
Form Factor
Tower (26L)
Dimensions (WxDxH)
205 x 396.9 x 425.9 mm (8.1 x 15.62 x 16.76 inches)
Weight
Around 14 kg (30.86 lbs)
CONNECTIVITY
WLAN + Bluetooth
Wi-Fi® 6E, 802.11ax 2x2 + BT5.3
WWAN
Non-WWAN
Ethernet
2.5GbE RTL8125BG

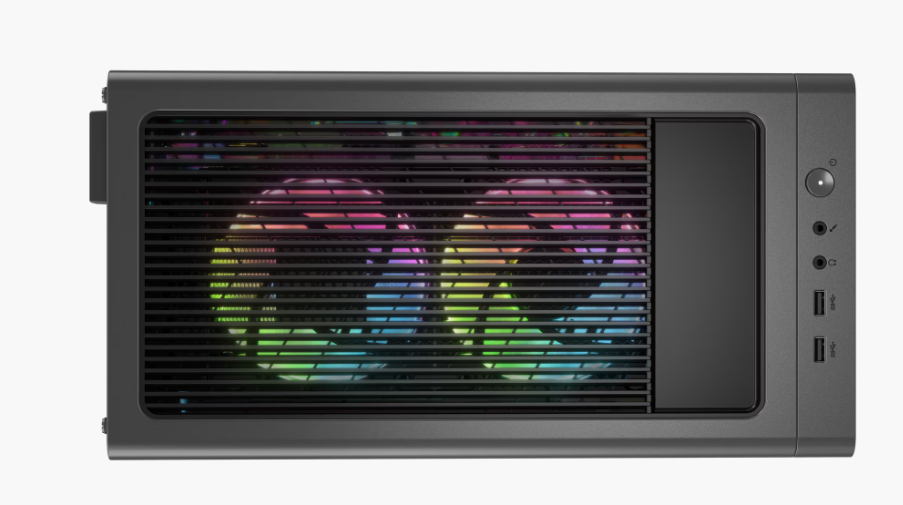

Top Ports
  • 2x USB 3.2 Gen 1
  • 1x headphone (3.5mm)
  • 1x microphone (3.5mm)

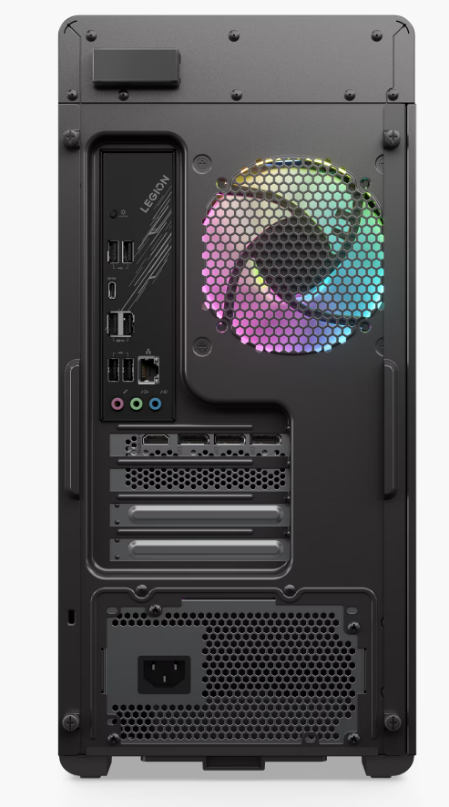

Rear Ports
  • 1x USB-C® 3.2 Gen 2 (support data transfer and 5V@3A charging)
  • 2x USB 3.2 Gen 1
  • 4x USB 2.0
  • 1x Ethernet (RJ-45)
  • 1x Lighting switch
  • 1x power connector
  • 3x audio connector (3.5mm)
SECURITY & PRIVACY
Security Chip
Firmware TPM 2.0 integrated in chipset
SERVICE
Base Warranty
1-year, Mail-in
Included Upgrade
None
CERTIFICATIONS
Green Certifications
  • ENERGY STAR® 8.0
  • ErP Lot 3
  • RoHS compliant
SOFTWARE
Operating System
Windows® 11 Home, French / English
Bundled Software
None
MODEL INFORMATION
Model
90UT000TFZ
Country/Region
Canada
TopSeller
No
EAN / UPC / JAN
197529466216
Announce Date
2023-04-26
End of Support
2028-11-30
