90UX0014US - Legion T5 26ARA8

90UX0014US - Legion T5 26ARA8

$999.00
$1,100.00 $999.00
Sale Sold out

Model Configurations

PERFORMANCE
Processor
AMD Ryzen™ 5 7600 (8C / 16T, 3.8 / 5.1GHz, 6MB L2 / 32MB L3)
Graphics
AMD Radeon™ RX 7600 8GB GDDR6
Chipset
AMD B650 Chipset
Memory
2x 8GB UDIMM DDR5-5600
Memory Slots
Four DDR5 UDIMM slots, dual-channel capable
Max Memory
Up to 32GB DDR5-5600
Storage
512GB SSD M.2 2280 PCIe® 4.0x4 NVMe®
Storage Support
Up to six drives, 2x 3.5" HDD + 1x 2.5" HDD + 3x M.2 SSD • 3.5" HDD up to 2TB each • M.2 SSD up to 2TB each
Card Reader
None
Optical
None
Audio Chip
High Definition (HD) Audio, Realtek® ALC897-Q codec
Speakers
No speakers
Power Supply
500W 85%
DESIGN
Keyboard
USB Calliope Keyboard, Black, English
Mouse
USB Calliope Mouse, Black
Expansion Slots
  • One PCIe® 4.0 x16
  • Four M.2 slots (one for WLAN, three for SSD: One M.2 2280 PCIe® 4.0 x2 and two M.2 2280 PCIe 4.0 x4)
  • One PCIe® 3.0 x4
Case Color
Storm Grey
System Lighting
Internal Ambient Lighting + Legion Lighting
Chassis
Transparent Cover
Cooler
M.2 SSD DECO Mylar® Heatsink + PCH Heatsink + 65W 80MM-Fan
System Fan
1x Rear with ARGB + 2x Front with ARGB
Carry Handle
Carry Handle
Pen
Pen Not Supported
Form Factor
Tower (26L)
Dimensions (WxDxH)
205 x 396.9 x 425.9 mm (8.1 x 15.62 x 16.76 inches)
Weight
Around 14 kg (30.86 lbs)
CONNECTIVITY
WLAN + Bluetooth
Wi-Fi® 6E, 802.11ax 2x2 + BT5.3
WWAN
Non-WWAN
Ethernet
Integrated 100/1000M

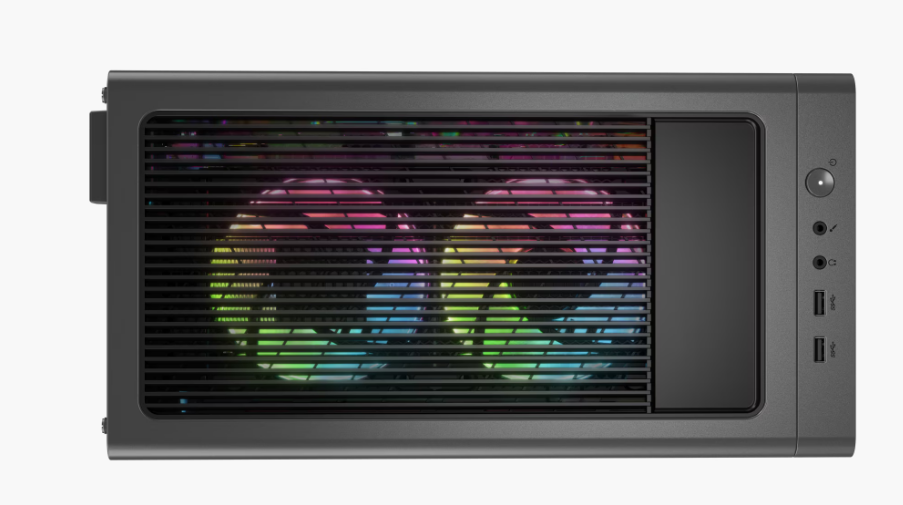

Top Ports
  • 2x USB 3.2 Gen 1
  • 1x headphone (3.5mm)
  • 1x microphone (3.5mm)

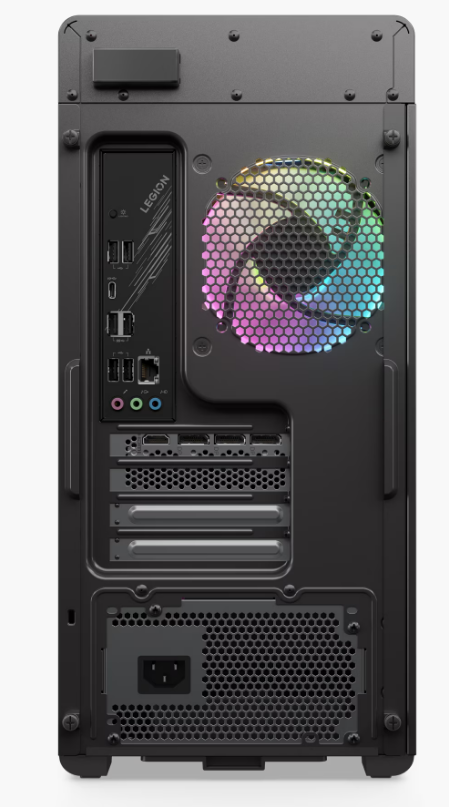

Rear Ports
  • 1x USB-C® 3.2 Gen 2
  • 2x USB 2.0
  • 2x USB 3.2 Gen 1
  • 2x USB 3.2 Gen 2
  • 1x Ethernet (2.5GbE RJ-45)
  • 1x Lighting switch
  • 1x power connector
  • 3x audio connector (3.5mm)
SECURITY & PRIVACY
Security Chip
Firmware TPM 2.0 integrated in chipset
SERVICE
Base Warranty
1-year, Mail-in
Included Upgrade
None
CERTIFICATIONS
Green Certifications
  • ENERGY STAR® 8.0
  • ErP Lot 3
  • RoHS compliant
SOFTWARE
Operating System
Windows® 11 Home, English
Bundled Software
None
MODEL INFORMATION
Model
90UX0014US
Country/Region
USA
TopSeller
No
EAN / UPC / JAN
197530707773
Announce Date
2024-01-25
End of Support
2028-12-30
